Description

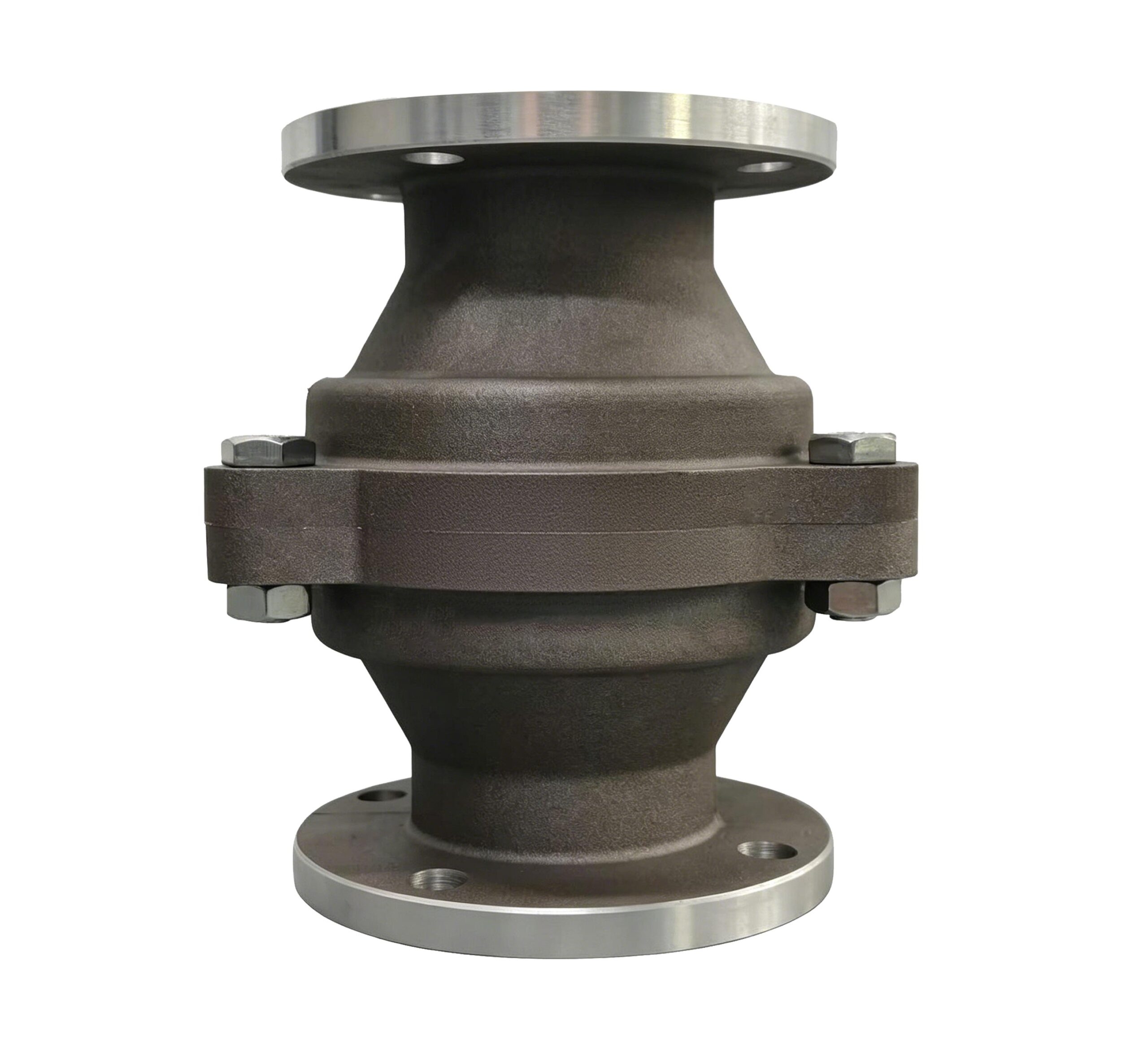

FAL-50 to FAL-200 Flanged Aluminum Flame Arrester
The FAL-50 to FAL-200 Flanged Aluminum Flame Arrester is designed for installation on pipelines and tank vent systems carrying or discharging combustible gases and vapors. It helps prevent flame propagation caused by flashback and reduces the risk of flame spreading through the pipeline, vent line, or storage tank system.
This flame arrester is manufactured with a high-quality cast aluminum alloy body and a stainless steel corrugated flame arresting element. The aluminum body provides a lightweight structure and corrosion-resistant performance, while the internal flame element helps extinguish flame propagation by absorbing and dissipating heat through narrow corrugated passages.
The unit adopts an O-ring sealing design, which makes the flame element easier to inspect, remove, clean, and reinstall during maintenance. With a compact structure, reasonable design, and reduced installation weight, this series is suitable for medium and small storage tanks, fuel tank systems, vapor recovery lines, and combustible gas pipeline applications.
Key Features
- Flanged aluminum flame arrester for tank and pipeline protection
- Available sizes from DN50 to DN200
- Aluminum alloy body with lightweight and corrosion-resistant structure
- Stainless steel corrugated flame arresting element
- O-ring sealing design for easy inspection and maintenance
- Designed to help stop flame propagation caused by flashback
- Suitable for medium and small fuel tanks, vapor lines, and combustible gas pipelines
Typical Applications
- Fuel oil tank vent systems
- Gasoline and diesel storage tank systems
- Oil gas and vapor recovery pipelines
- Coal gas pipeline systems
- Natural gas venting systems
- Combustible gas discharge pipelines
- Industrial storage tank safety protection systems
Technical Specifications
| Product Model | FAL Series |
| Nominal Size | DN50 to DN200 |
| Body Material | Aluminum Alloy |
| Flame Element Material | Stainless Steel Corrugated Plate |
| Connection Type | Flanged Connection |
| Applicable Media | Diesel vapor, gasoline vapor, coal gas, natural gas, and similar combustible gases |
Main Dimensions
| Size DN | D1 mm | D0 mm | H mm | Bolt Quantity | Bolt Hole Diameter |
|---|---|---|---|---|---|
| DN50 | 140 | 110 | 175 | 4 | Φ14 |
| DN80 | 185 | 150 | 215 | 4 | Φ14 |
| DN100 | 205 | 170 | 220 | 4 | Φ18 |
| DN150 | 260 | 225 | 240 | 8 | Φ18 |
| DN200 | 315 | 280 | 260 | 8 | Φ18 |
Installation and Maintenance
The FAL flanged aluminum flame arrester should be installed according to the pipeline direction, tank venting requirements, and project safety design. Before installation, the pipeline should be cleaned to remove welding slag, metal particles, dust, and other foreign materials that may block or damage the flame arresting element.
For reliable performance, the flame arresting element should be inspected periodically. If blockage, deformation, corrosion, or mechanical damage is found, the flame element should be cleaned or replaced. The flame element can be cleaned with steam, compressed air, or a non-corrosive cleaning solvent. Sharp or hard tools should not be used, as they may damage the stainless steel corrugated flame arresting structure.
Selection Notes
When selecting a flanged aluminum flame arrester, the medium, gas group, pipeline size, connection standard, operating pressure, temperature, flow capacity, installation position, and required flame arresting performance should be reviewed carefully. THINKTANK can provide engineering support for flame arrester selection and related tank protection solutions according to project requirements.
