TT-BWA42Y Thermal-Jacketed Balanced Bellows Full-Lift Safety Valve

Product Overview

The THINKTANK TT-BWA42Y Series is a thermal-jacketed, balanced bellows, full-lift safety valve developed for process applications where both heat preservation and back-pressure compensation are important.

The valve incorporates a thermal insulation jacket around the process-containing body section, including the inlet and outlet flange areas, helping maintain the temperature of the process medium as it passes through the safety valve.

A balanced bellows assembly is incorporated to reduce the influence of fluctuating discharge-side back pressure on safety valve operation while also providing additional separation between the process medium and the upper spring chamber.

The TT-BWA42Y is intended for demanding applications such as polyether, ethylene, urea fertilizer and similar process units where cooling of the process medium may lead to increased viscosity, crystallization, solidification or other operational problems.

Quick Specifications

Parameter	Specification
Model	TT-BWA42Y
Product Type	Thermal-Jacketed Balanced Bellows Safety Valve
Design	Direct Spring-Loaded
Lift Type	Full Lift
Balancing Design	Balanced Bellows
Thermal Design	Insulated / Jacketed Body
Jacket Coverage	Valve body including inlet and outlet flange areas
Optional Function	Steam Flushing / Steam Purging
Typical Applications	Polyether, ethylene, urea and similar process units
Standard Trim	Austenitic stainless steel
Seat Surface	Stellite hardfacing
Optional Materials	Urea-grade 316L, duplex and super duplex stainless steels
Manufacturer	THINKTANK

Thermal Jacket Design

The TT-BWA42Y incorporates a thermal insulation jacket around the valve body, including the process-side inlet and outlet flange areas.

The purpose of the jacket is to reduce heat loss from the process medium and maintain a more stable temperature around the valve body and flow passages.

This design is particularly useful for process fluids that may experience problems when temperature decreases, such as:

• Increased viscosity
• Crystallization
• Precipitation
• Solidification
• Deposition around the valve nozzle or seat
• Restricted flow through the valve body

Maintaining process temperature around the safety valve can therefore be important not only for normal operation but also for ensuring that the relieving flow path remains available when overpressure protection is required.

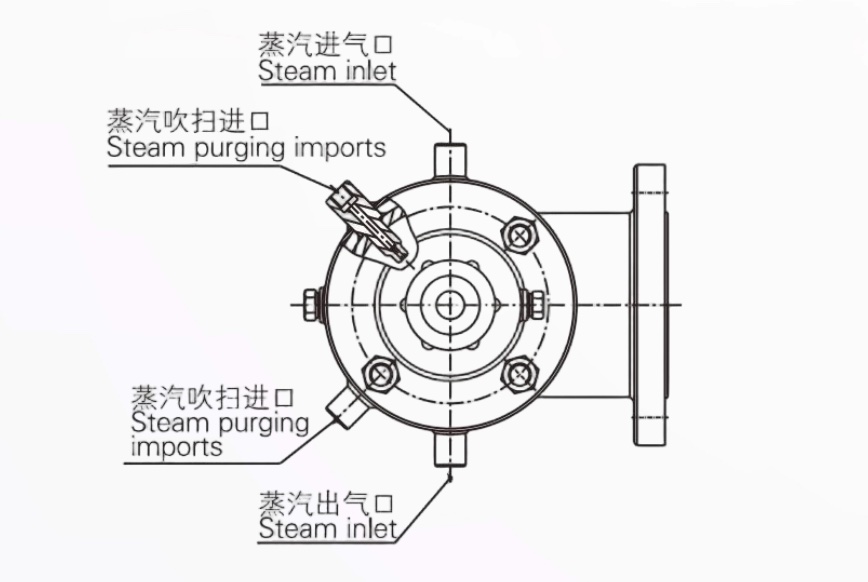

Steam Flushing and Purging Option

For special process requirements, the TT-BWA42Y can be provided with optional steam flushing or steam purging connections.

The illustrated construction includes dedicated flushing inlets associated with the jacketed body section.

Depending on the process design, these connections may be used to assist with:

• Heating the valve body
• Maintaining process temperature
• Removing deposits
• Flushing residual process medium
• Reducing the risk of crystallization or solidification
• Preparing the valve for maintenance or shutdown

The required flushing medium, pressure and connection arrangement should be confirmed for each project.

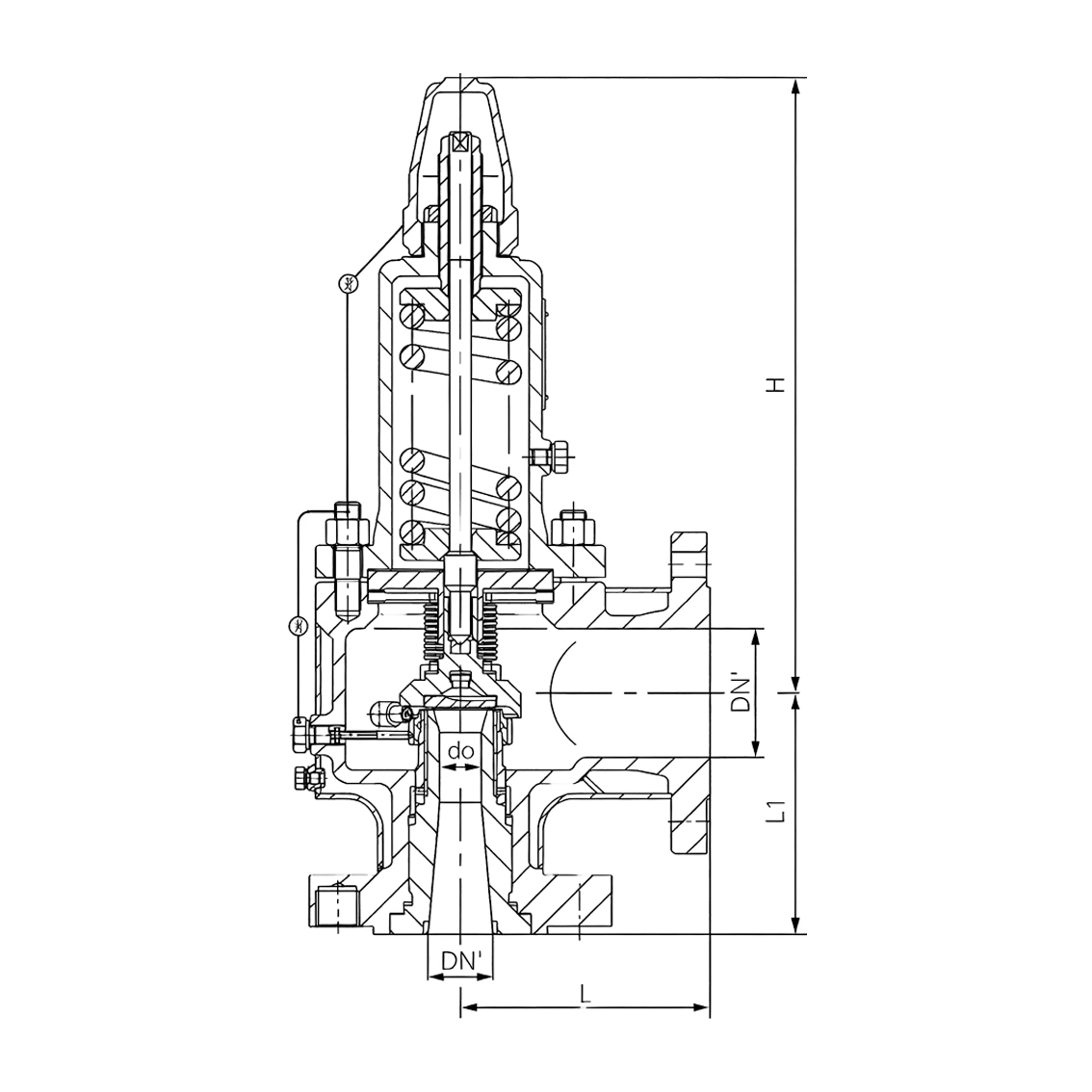

Dimensions – PN16 / PN25 / PN40

Dimensions – PN64 / PN100

Dimensions are for preliminary engineering and layout reference. Final approved dimensional drawings should be confirmed before piping fabrication or installation.

Pressure Rating and Size Range

PN16 / PN25 / PN40: DN20–DN350
PN64 / PN100: DN20–DN150

For the TT-BWA42Y thermal-jacketed safety valve, the final installation envelope should also consider the thermal jacket, steam inlet and steam purging connections, not only the main valve face-to-face and overall height dimensions.

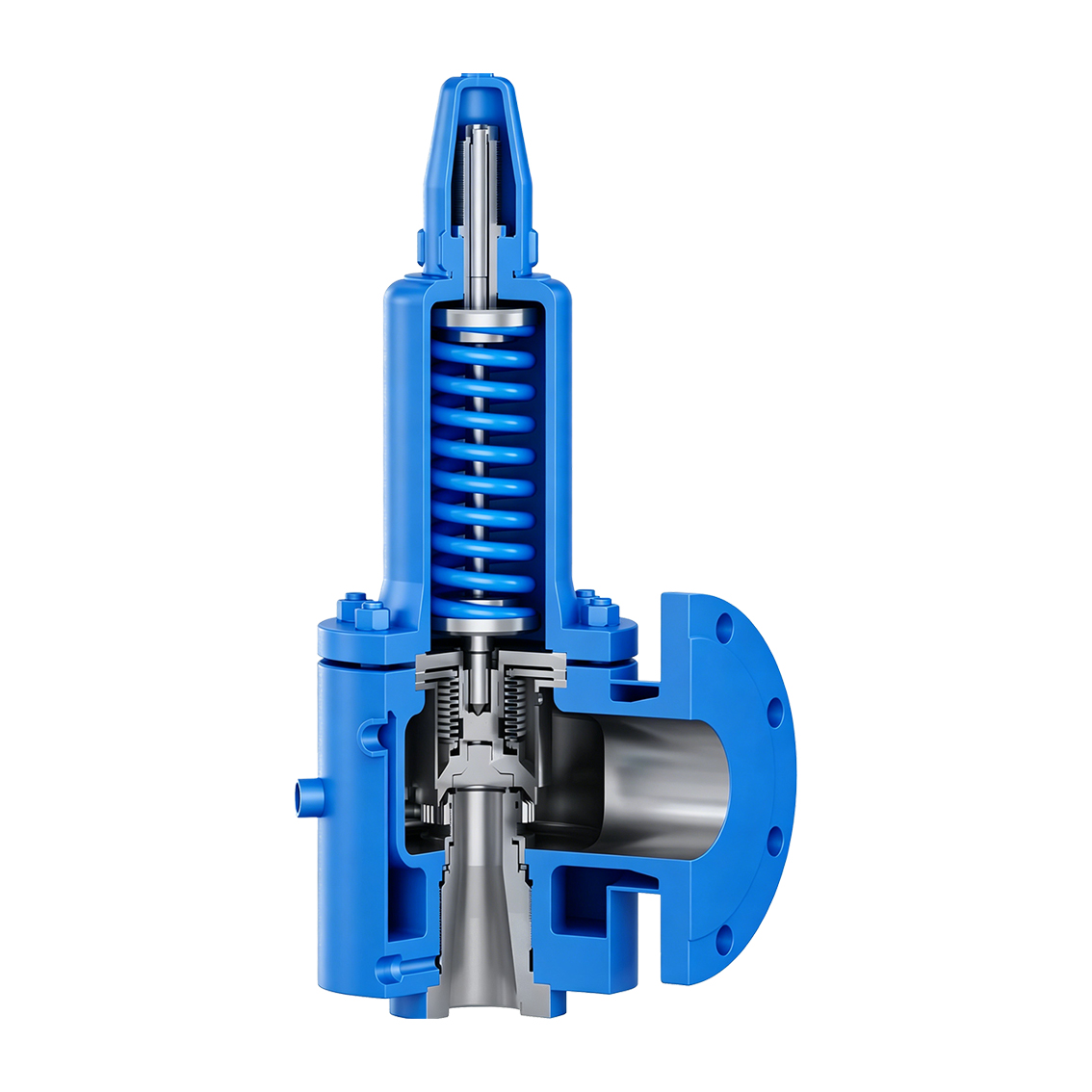

Balanced Bellows Construction

The TT-BWA42Y incorporates a balanced bellows assembly designed to reduce the influence of variable back pressure on safety valve operating characteristics.

In conventional unbalanced spring-loaded safety valves, outlet pressure can create additional forces acting on the internal components of the valve.

Where discharge pressure varies, this may influence valve opening, closing and relieving performance.

The balanced bellows arrangement is intended to compensate for much of this pressure effect, making the valve suitable for applications involving:

• Variable back pressure
• Closed discharge systems
• Common relief headers
• Pressurized discharge piping
• Multiple safety valves connected to a shared relief manifold

The actual allowable back-pressure range should be confirmed during project-specific safety valve sizing and selection.

Bellows Isolation Function

In addition to its balancing function, the bellows provides separation between the process medium and the upper bonnet internals.

This helps isolate components such as:

• Spring
• Stem
• Spring washer
• Other bonnet internals

from direct exposure to the process medium.

This feature can be particularly useful where the process medium is corrosive, hazardous or prone to deposition.

Full-Lift Design

The TT-BWA42Y uses a full-lift safety valve configuration.

Under the general performance criteria applicable to this safety valve family:

Lift H ≥ 1/4 d₀

where:

• H = Valve lift
• d₀ = Orifice diameter

The full-lift design provides a larger available discharge area than a low-lift valve and is therefore suitable for applications requiring greater relieving capacity.

Actual relieving capacity must still be verified according to the required relief load, set pressure, relieving temperature, medium properties and back-pressure conditions.

Standard Trim Materials

The standard internal components, including the disc and seat, are manufactured from austenitic stainless steel.

The sealing surfaces are provided with Stellite hardfacing to improve resistance to:

• Wear
• Erosion
• Repeated opening and closing
• High-velocity relieving flow
• Seat damage under demanding process conditions

Final trim selection should nevertheless be reviewed against the actual medium and operating temperature.

Optional Materials for Severe Service

For corrosive and demanding process applications, optional internal materials can include:

• Urea-grade 316L stainless steel
• 0Cr25Ni6Mo3CuN
• 00Cr25Ni6Mo2N
• F51 / UNS S31803 duplex stainless steel
• F53 / UNS S32750 super duplex stainless steel
• F55 / UNS S32760 super duplex stainless steel

The appropriate material should be selected according to process chemistry, concentration, temperature, corrosion mechanism and project material specification.

Typical Applications

The TT-BWA42Y Series can be considered for:

• Urea fertilizer plants
• Polyether process units
• Ethylene process systems
• Petrochemical plants
• Chemical processing systems
• Media prone to crystallization
• High-viscosity process fluids
• Temperature-sensitive process services
• Corrosive process systems
• Closed relief systems with variable back pressure
• Heated and insulated piping systems
• Process equipment requiring steam tracing or heat preservation

General Performance Requirements

Applicable Medium	Shell Test Pressure Ps	Seal Test Pressure Pm	Blowdown ΔP	Discharge Pressure Pp	Lift Height H
Steam	—	90% Pk or the minimum reseating pressure, whichever is lower	When Pk ≤ 0.4 MPa: ΔP ≤ 0.04 MPa; when Pk > 0.4 MPa: ΔP ≤ 10% Pk	≤ 1.03 Pk	Full-lift: ≥ 1/4 d₀; Low-lift: ≥ 1/20 d₀
Air or other gases	1.5 PN	When Pk ≤ 0.3 MPa: Pm = Pk − 0.03 MPa; when Pk > 0.3 MPa: Pm = 90% Pk	When Pk ≤ 0.2 MPa: ΔP ≤ 0.03 MPa; when Pk > 0.2 MPa: ΔP ≤ 15% Pk	≤ 1.1 Pk	Full-lift: ≥ 1/4 d₀; Low-lift: ≥ 1/20 d₀
Water or other liquids	—	When Pk ≤ 0.3 MPa: Pm = Pk − 0.06 MPa; when Pk > 0.3 MPa: Pm = 80% Pk	When Pk ≤ 0.3 MPa: ΔP ≤ 0.06 MPa; when Pk > 0.3 MPa: ΔP ≤ 20% Pk	≤ 1.2 Pk	Full-lift: ≥ 1/4 d₀; Low-lift: ≥ 1/20 d₀

Notes:

• Pk = Set pressure
• d₀ = Orifice diameter
• PN = Nominal pressure
• Actual test and performance requirements shall be confirmed according to the selected valve configuration, project specification and applicable standard.
• For the TT-BWA42Y, back pressure, process temperature and jacket operating conditions should be reviewed together during selection.

For the TT-BWA42Y Series, the full-lift criterion applies: H ≥ 1/4 d₀.

Jacketed Safety Valve Selection

For correct selection of the TT-BWA42Y, provide:

• Process medium
• Medium composition and concentration
• Set pressure
• Operating pressure
• Design pressure
• Operating temperature
• Relieving temperature
• Required relieving capacity
• Superimposed back pressure
• Built-up back pressure
• Maximum total back pressure
• Whether back pressure is constant or variable
• Process fluid crystallization or solidification temperature, if applicable
• Required heat preservation temperature
• Jacket heating medium
• Jacket heating-medium pressure and temperature
• Whether steam flushing / purging is required
• Inlet and outlet connection requirements
• Required body, trim and bellows materials
• Applicable standards and certification requirements
• Discharge header arrangement

For urea and other highly corrosive process services, material compatibility should be reviewed in detail before final valve selection.

Engineering Support

THINKTANK supports fertilizer plants, petrochemical companies, EPC contractors, process licensors, system integrators and industrial equipment manufacturers with:

• Jacketed safety valve sizing and selection
• Balanced bellows safety valve selection
• Back-pressure evaluation
• Relieving capacity calculation and review
• Thermal jacket configuration
• Steam flushing / purging arrangement
• Severe-service material selection
• Urea-service material evaluation
• Bellows material compatibility review
• Dimensional drawings
• 3D models for system integration
• Existing safety valve replacement evaluation
• Project-specific technical documentation

With more than 30 years of industrial valve application experience, THINKTANK can support safety valve selection for difficult services involving temperature control, crystallizing media, corrosive fluids and variable back pressure, as well as equivalent replacement of existing severe-service safety valves.
