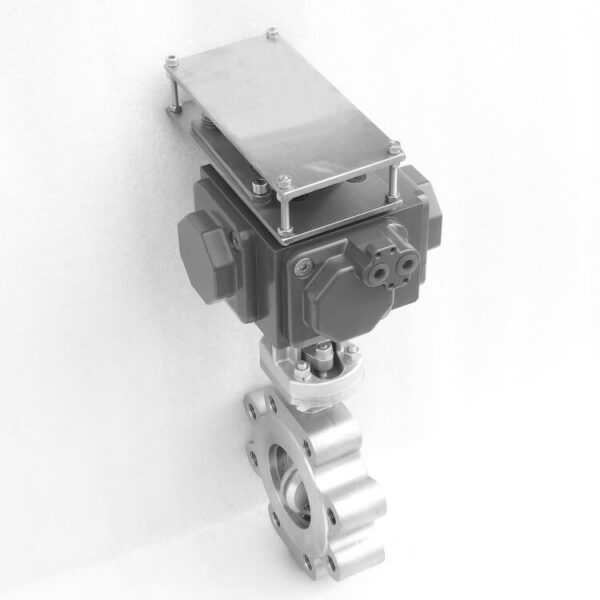

Fire safety shut-off valve

Fire safety shut-off valve

The working principle and characteristics of the fusible link valve have a fuse device inside the valve. When the ambient temperature reaches a certain value or the fire reaches a certain temperature, the valve fuse device will fuse and the valve will automatically close.

Additional information

Size:

1/2'' ~ 12''

ANSI Class:

150 ~ 300LB, PN16 ~ PN64

Body Materials:

A216 WCB, A216WC6, A352 LCB, A351 CF8, A351 CF8M, A351 CF3M, A351 CF3

Description

Specifications
Body Size: 1/2″(DN15)~12″(DN300)
Fusing Temperature: 165°F(74°C), 212°F(100°C)
Material: Carbon Steel, Stainless Steel, Lining Fluorine
Body Type: Ball Valve, Butterfly Valve
Connection Type: For Ball Valve( Threaded, Welding, Flanged), Butterfly Valve(Wafer, Flanged, Lugged)
Application Medium: Ammonia, Gas, Liquefied Gas, Methanol, Oil, Combustible Gas/Liquid
Signal Switch Feedback Device
The feedback signal of the limit switch is combined to indicate the valve opening and closing position. The appearance design is exquisite, and the installation with the actuator is more compact and convenient. The device can effectively monitor the specific switching status of the valve and realize the local and remote monitoring functions.
Precautions for testing and maintenance:
When testing or repairing the fused emergency shut-off valve, the switch device (valve) installed upstream must be turned off. The fused emergency shut-off valve only operates in emergency situations. In order to enable it to operate correctly in an emergency, it should be manually opened and closed more than three times a year to avoid debris deposits or other conditions that may cause the valve to not work properly.

Additional information

Size:

1/2'' ~ 12''

ANSI Class:

150 ~ 300LB, PN16 ~ PN64

Body Materials:

A216 WCB, A216WC6, A352 LCB, A351 CF8, A351 CF8M, A351 CF3M, A351 CF3
