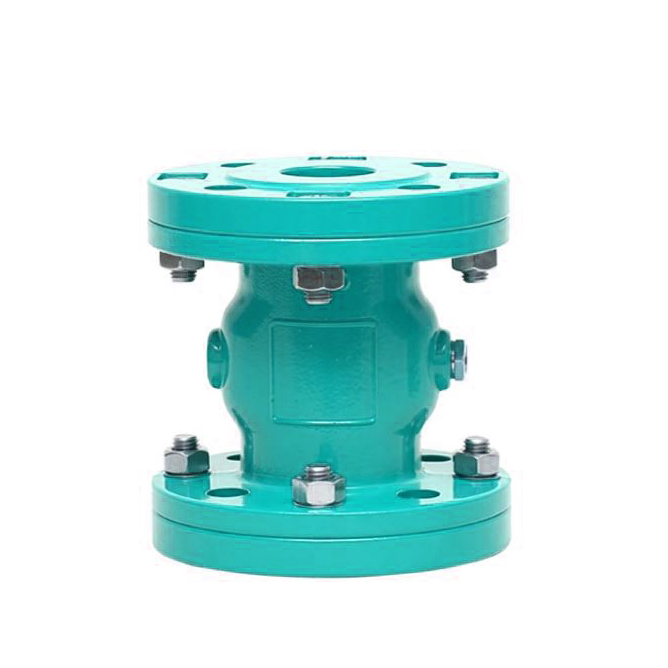

Air-Operated Pinch Valve

Air-Operated Pinch Valve

Pinch valves are ideal valves for fluids containing solid particles or contaminants to isolate and regulate pipelines. Because the sleeve is the only part in touch with the medium, it is extremely resistant to wear and corrosion. Even if complicated chemical processes are occurring in the pipeline, the pinch valve is still easy to handle them. Its applications include power plants, sewage treatment plants, mining, and chemical process control.

Additional information

Description

Air-Operated Pinch Valve | Pneumatic Pinch Valve

The solution for isolating, controlling, and metering abrasive, corrosive, and fibrous goods such as granulates, powder, pellets, dust, and liquids containing solids, among others.

air operated pinch valves

Sleeve Materials For Pinch Valves

Sleeve Material Suitable Temperature Typical Medium Application
SBRT
Styrene Butadiene,
Flowrox Blend
‘-40°C  to +110°C Abrasive materials, diluted acid, alkali and chemical applications Heavy wearing
High cycle frequency
EPDM
Ethylene Propylene
40°C to +120°C Concentrated and oxidizing chemicals Chemical applications
– Applicable to 75% of all
industrial chemical applications
NBR
Nitrile Rubber
-30°C to +100°C Oils, fats, fuels, hydrocarbon, lubricants Applications involving oils, fats
and hydrocarbon
NR
Natural Rubber
‘-50°C to +75°C Abrasive materials, diluted acids, alkali a chemicals High wear applications
HNBR
Hydrogenated
Nitrile
-30°C to +160°C Oils, fats, fuels hydrocarbon, lubricants High temperature applications
NRF
Natural Rubber
Foodstuff Quality
White inner lining
-40°C to +75°C Media used in food and other CIP (clean-in-place) processes, alcohol Foodstuff applications
-Fulfils FDA Food and Drug Administration) requirements
NBRF
Nitrile Rubber
White inner lining
-30°C to +100°C Vegetable and animal oils and fats Applications involving fatty foodstuff
-Fulfls FDA (Food and Drug Administration) requirements
EPDM/B
Ethylene Propylene, Blend
-40°C to +100°C Green liquor, alkaline and extraneous matter in green
liquor processes
Pulp and paper industry’s
green liquor application
CR
Chloroprene Rubber
-40°C  to +100°C Chemicals, acids, several solvents, aliphatic oils, fats,
lubricants
Special-purpose chemical applications
-Resilient to ozone and averse
weather
 FPM
Fluorine Rubber
(Viton⑧)
-20°C to +120°C Chemicals, aliphatic oils, aromatic and halogenated hydrocarbon Special-purpose chemical applications
-Resilient to ozone and averse weather
CSM
Chloro-sulphone-ethylene([email protected])
-40°C to +100°C Chemicals, acids, several solvents, aliphatic oils, fats, lubricants Special-purpose chemical applications
-Resilient to ozone and averse weather
IIR
Butyl
-40°C to +100°C Concentrated and acidic chemicals, vegetable oils Special-purpose chemical applications
-Impermeable to gas
PU
Polyurethane with
PU lining
-10°C to +80°C Abrasive materials, diluted chemicals, hydrocarbon, oils, lubricants Abrasive media applications

vf pinch valves 1

Different Flange Types of Pneumatic/Air-Operated Pinch Valves

pneuamtic pinch valve application



Different Flanged Ends Types

a. Aluminum Flange

b. Aluminum Flange with Stainless Stel Bushing

c. Aluminum Flange with Internal Threaded

d. Aluminum Flange with Flange Sleeve

pneumatic pinch valve types



Dimensions of Flanged Ends

different flanged ends

air operated pinch valves connection dimensions

DN(mm) D1 DA DF nB
(number of holes)
Φd ΦTK L G H E PS Max. (Bar) G1
(Internal Threaded)
GT
40 40 150 88 4 18 110 155 G1/4″ 56 28 6 G11/2″ 19
50 50 165 102 4 18 125 183 G1/4″ 65 28 6 G2″ 24
65 65 185 122 4 18 145 183 G1/4″ 81 30 6 G21/2″ 22
80 80 200 138 8 18 160 228 G1/4″ 95 31 6 G3″ 22
100 100 220 158 8 18 180 280 G1/4″ 112 35 6 G4″ 20
125 125 250 184 8 18 210 348 G1/4″ 136 40 6
150 150 285 212 8 22 240 418 G1/4″ 160 43 6
200 200 340 268 8 22 295 558 G3/8″ 206 60 4
250 250 395 320 12 22 350 680 G1/2″ 266 67 3
300 300 445 370 12 22 400 820 G1/2″ 306 70 3



pneumatic pinch valves factory

Threaded Ends Dimension of Pneumatic/Air-Operated Pinch Valves

air operated pinch valves threaded ends dimensions

DN(mm) D1 D2 IG GT L1 L2 G H
10 46 35 G3/8″ 12 68 80 G1/8″ 23
15 56 47 G1/2″ 15 85 95 G1/8″ 28
20 62 49 G3/4″ 17 93 103 G1/8″ 32
25 72 57 G1″ 20 110 120 G1/8″ 37
32 80 66 G11/4″ 21 130 140 G1/4″ 45
40 90 77 G11/2″ 21 150 160 G1/4″ 50
50 110 88 G2″ 25 175 185 G1/4″ 60
65 139 115 G21/2″ 30 173 200 G1/4″ 74
80 173 133 G3″ 33 213 230 G1/4″ 90
100 203 156 G4″ 20 264 280 G1/4″ 107



pneumatic pinch valves manufacturer
